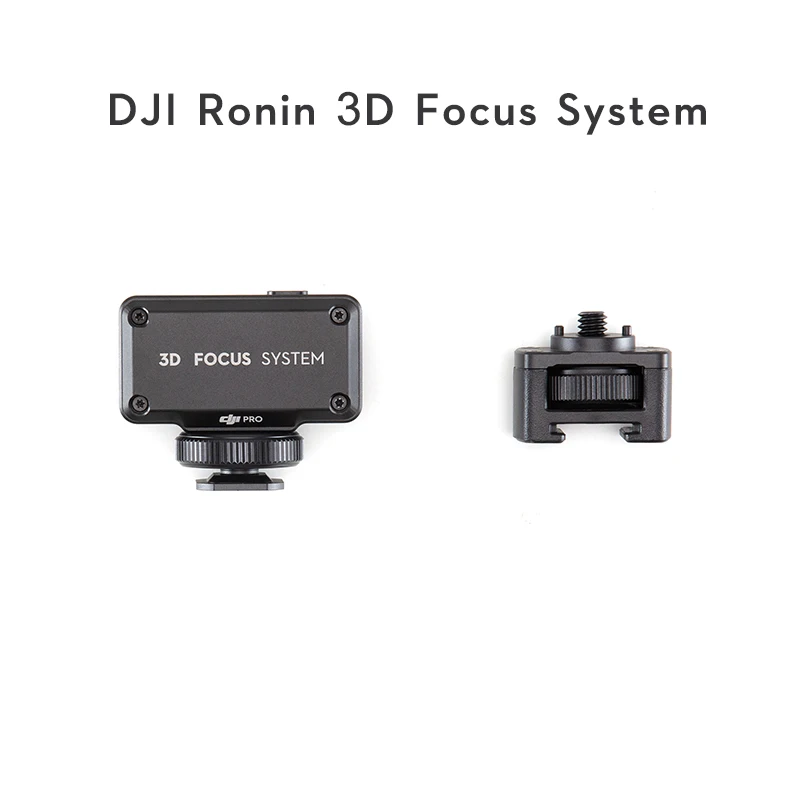

DJI Ronin 3D Focus System
Automatically detects the distance between the lens and subject and enables a center AF point for manual focus lenses.
Compatibility: DJI RS 2
In the Box
3D Focus System × 1
1/4''-20 to Cold Shoe Adapter × 1
Multi-Camera Control Cable (USB-C, 30 cm) x 1
Overview
The DJI Ronin 3D Focus System automatically detects the distance between the lens and subject and enables a center AF point for manual focus lenses for a continuously focused shot. Requires the DJI Ronin Focus Motor to function.
The maximum detection range of the DJI Ronin 3D Focus System may vary according to the subject's reflectivity. When filming a person, the max range is approximately six metres.
Specifications
Working Frequency: 2.400-2.4835 GHz，5.725-5.850 GHz
Weight: 126 g
Dimensions: 82 mm x 63 mm x 24 mm
Transmission Power (EIRP):
2.400-2.4835 GHz:
<25dBm (FCC)
<20dBm (CE/SRRC/MIC)
5.725-5.850 GHz:
<25dBm (FCC/SRRC)
<14dBm(CE)
Compatibility
DJI RS 2
